Small Dose Powder Filling Machine | VTOPS-P4
Semi Automatic Small Dose Powder Filling Machine | VTOPS-P4
Machine Type: Semi-Automatic, Manual.
Small dose powder filling machine is a semi-automatic small volume quantitative auger filler . The machine applies to quantitative filling small dose dry powders such as chemical, food, pharmaceutical and other industries powdered materials.
Contents:
1. Detail Photos

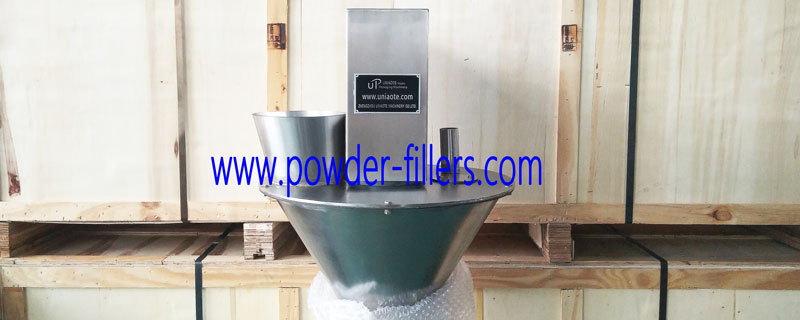

Image Description: A Photo of Small Dose Semi Automatic Powder Filler Machine Pre-delivery.

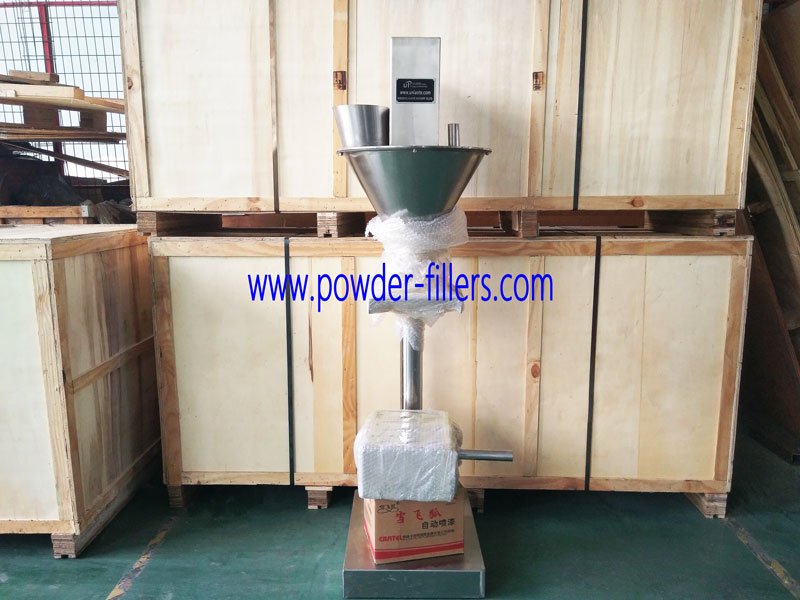

Image Description: A Photo of Small Dose Semi Automatic Powder Filler Machine Pre-delivery.
2. Features:
- 1) Filling range is adjustable from 1 gram to 50 gram.
- 2) Filled weight calculates to the target weight by itself.
- 3) Easy to use: without space restriction.
- 4) Good corrosion resistance, not contaminated material.
- 5) A small weigher fixed on the top of work table to easy operate.
- 6) Bags, bottles and pouches all containers can be.
3. Technical Parameters:
| Model | VTOPS-P4 |
|---|---|
| Filling Weight | 1 gram – 50 grams |
| Filled Error | ≤ 0.1g-1g |
| Measurement Method | Auger Filler |
| Filling Speed | 0-40 fills/min |
| Contact Materials | SUS 304 |
| HMI | Keyboard |
| Control System | SCM |
| Filling Motor | Stepper Motor |
| Hopper Volume | 15 Liters |
| Machine Weight | 120 Kg |
| Voltage | AC 1P 220V 50Hz |
| Powder | 0.3Kw |
| Dimensions | 600 × 500 × 1600mm |
4. Working Video:
5. Related Knowledge Links:
-
How does it Work?
How does the semi automatic auger powder filling machine work?
-
Design Diagram:
-
Classic Case
-
5. How does it Shipping?
How does the semi automatic auger powder filling machine shipping?
