UA-DGS

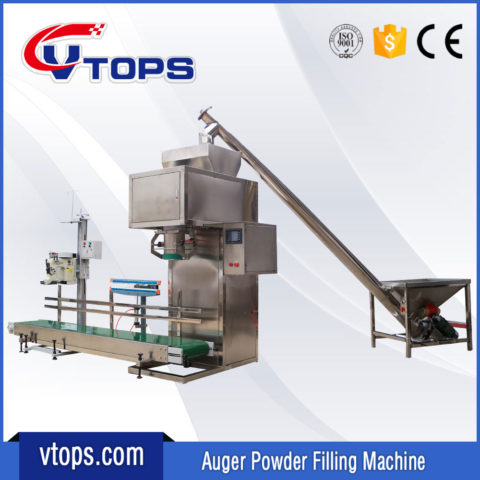

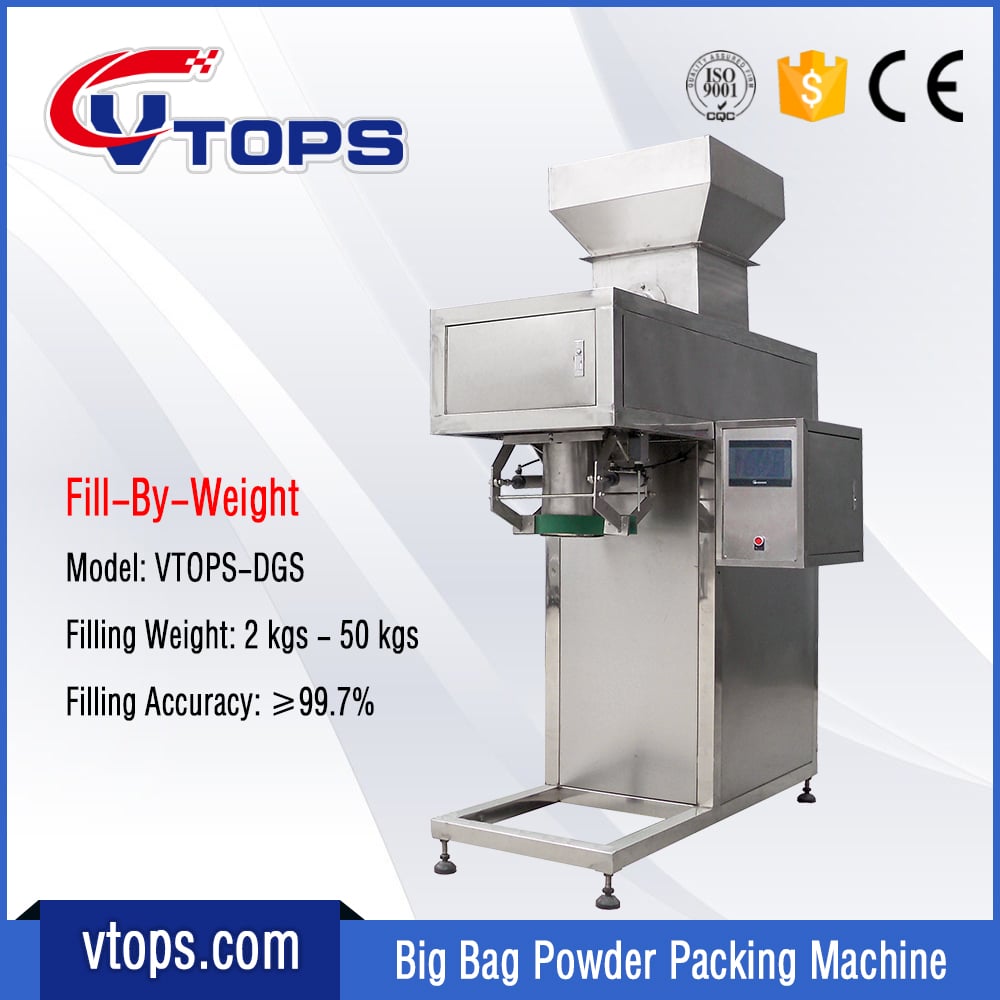

2Kg-50Kg Auger Powder Filler for Big Bags (Single Auger)

2Kg-50Kg Auger Powder Filler (Single Auger) is my company developed a new generation of intelligent electronic weighing packaging machine. With a reasonable structure, stable running, easy operation, high weighing accuracy.
Host using fast and slow two-speed feeding, faster. Advanced digital frequency conversion technology, sampling technology, anti-jamming technology, and to achieve automatic compensation and error correction for powder, granular, flake materials packing.
Products are widely used in food additives, chemical raw medicine, flour, milk powder, starch, sugar, chicken, monosodium glutamate, seeds, rice, additives, fertilizer, feed, plastic powder, new building materials and other industries.

Features:

  1. All stainless steel production process, contact materials are SS304.
  2. Electronic screen, PLC controlled. Operation is simple.
  3. Independent suspension sensors, signal transmission stability and ensure weighing accuracy.
  4. Infrared sensor, two-speed feeding system, high weighing accuracy.
  5. Hopper with the broken materials motor, when the auger sending the material will let the material looser.
  6. Ring clamp bags device, the bag and discharge hole joint close, to reduce dust spills.
  7. With feeder, conveyor, sealing machine suitable realizing automation and control, improve efficiency and reduce labor intensity.

Technical Parameters:

2Kg-50Kg Auger Powder Filler (Single Auger)
ModelUA-DGS-10FUA-DGS-25FUA-DGS-50F
Filling Range2-10 Kg5-25 Kg10-50Kg
Filling Accuracy≤±0.5%≤±0.3%≤±0.3%
Packing Speed4-10 bags / min3-8 bags / min3-6 bags / min
Feeding Method Single Auger
Measurement MethodClamp and Hold Bags Weighing
Air Pressure & Consumption0.4-0.6Mpa 1 m3/h
Power3P 380V 50Hz 1.5Kw
Dimensions 600 × 1400 × 1800 mm820×1400×2300 mm820×1400×2300 mm

Detail Photos of Clamp and Hold Bags Weighing Device:
