Automatic Dry Powder Filling Line Manufacturer

Automatic dry powder filling line is generally composed of multiple machine equipment with different functions, in order to meet the purposes of product production or processing.
Reduce the manpower, optimize the work process and improve the efficiency. According to the degree of automation can be divided into: Automatic Dry Powder Filling Line, Semi-Automatic Dry Powder Filling Line.

This article mainly introduces the Automatic Dry Powder Filling Line:

The Composition of Common Automatic Dry Powder Filling Line

  1. Automatic Dry Powder Filling Line for Tin Cans:
    Unscrambler Cans Machine → Can Turning & Degauss & Blowing Machine → Empty Cans Sterilizing Machine → Spoon Casting Machine → Automatic Dry Powder Feeding Machine (Screw Conveyor) → Automatic Dry Powder Filling Machine → Automatic Vacuum Infill Nitrogen Seaming Machine → Cans Body Cleaning Machine → Laser Marking Machine → Cans Turning Machine → Automtiac Plastic Lids Capping Machine → Encasement Table.
    The Design Diagram of Automatic Dry Powder Filling Line for Tin Cans
  2. Automatic Dry Powder Filling Line for Bottle Jars:
    Unscrambler Bottles Machine → Automatic Dry Powder Feeding Machine (Screw Conveyor) → Automaitc Dry Powder Filling Machine → Automatic Rotary Capping Machine → Automatic Labeling Machine → Spurt the Code Machine → Encasement Table.
    The Design Diagram of Automatic Dry Powder Filling Line for Bottle Jars

Work Process

According to different materials, different packaging process, the work process is also different. Here are some reference workflows:

  1. The Process of Automatic Dry Powder Filling Line for Tin Cans:
    1. Initial Preparation:
      Cans Entry & Turning & Degauss & Blowing & Sterilizing. This is the initial preparation before dry powder filling.
    2. Dry Powder Filling:
      Dry powder filling can be using different dry powder filling machines to meet customer needs. For example: Linear filling or Rotary Filling; On-line Weighing; High-precision; Double-headed Filling, these are the factors that need to be considered.
      The following is a comparison of fully automatic rotary dry powder filling machines:
      Fully Automatic Auger Powder Fillers
      ModelUA-PSH-01UA-PSH-01UA-PSH-02UA-PDH
      Quantity of FillerOneOneOneTwo
      Filling Range5-500g100-2000g100-2000g100-2000g
      Filling Accuracy≤±1%≤±1%≤±2g≤±2g
      Online Weighing System--
      Closed Frame-
      Easy Clean Hopper
      Fine polished Auger
      Rotary Turntable
      Diameter of Container≤ 100mm≤ 100mm≤ 200mm≤ 200mm
    3. Cans Seaming:
      Cans seaming usually have two kinds method: Automaitc Seaming Machine (Ordinary Pressure), Automatic Vacuum Infill Nitrogen Seaming Machine (Negative Pressure).
      In order to ensure that the dry powder fresh and longer shelf life, the general use of the automatic vacuum and infill Nitrogen seaming way. The machine has the advantage of a three-in-one machine: Vacuum, Infill nitrogen, and then Seam. The disadvantage is the speed only 7-10 cans per minute, due to three functions in one machine. If the customers requirements of high speed, you can use multiple machines.
    4. End of Process:
      Cans Body Cleaning; Laser Marking; Cans Turning; Automtiac Plastic Lids Capping; Encasement Table.
  2. The Process of Automatic Dry Powder Filling Line for Bottle Jars:

    It is easier and similar than the Automatic Dry Powder Filling Line for Tin Cans.

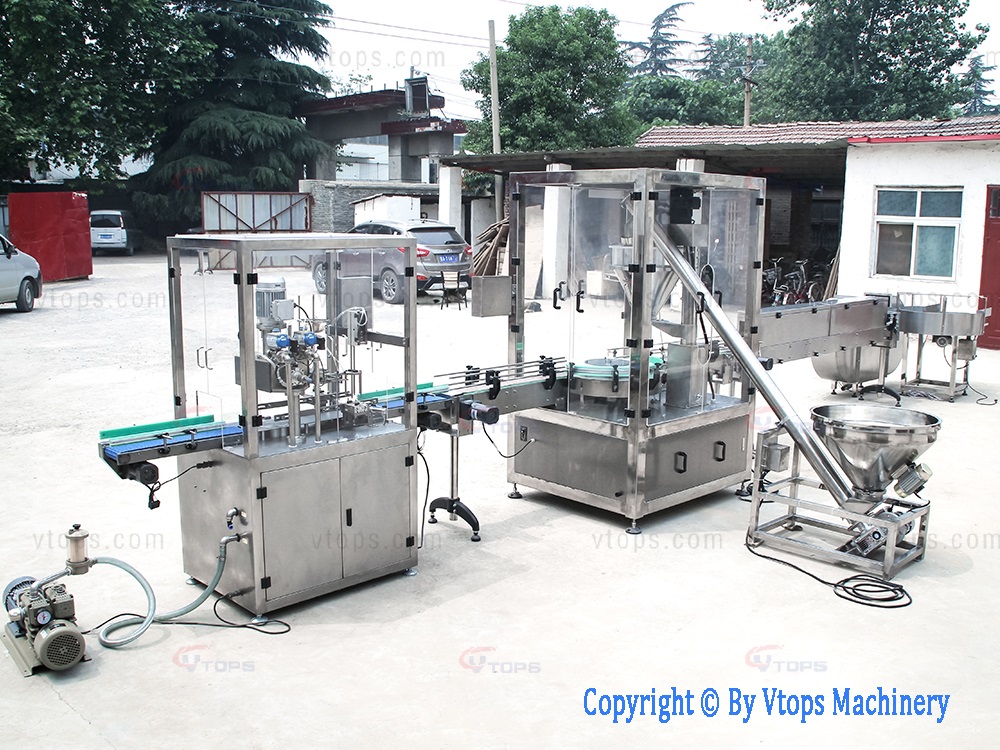

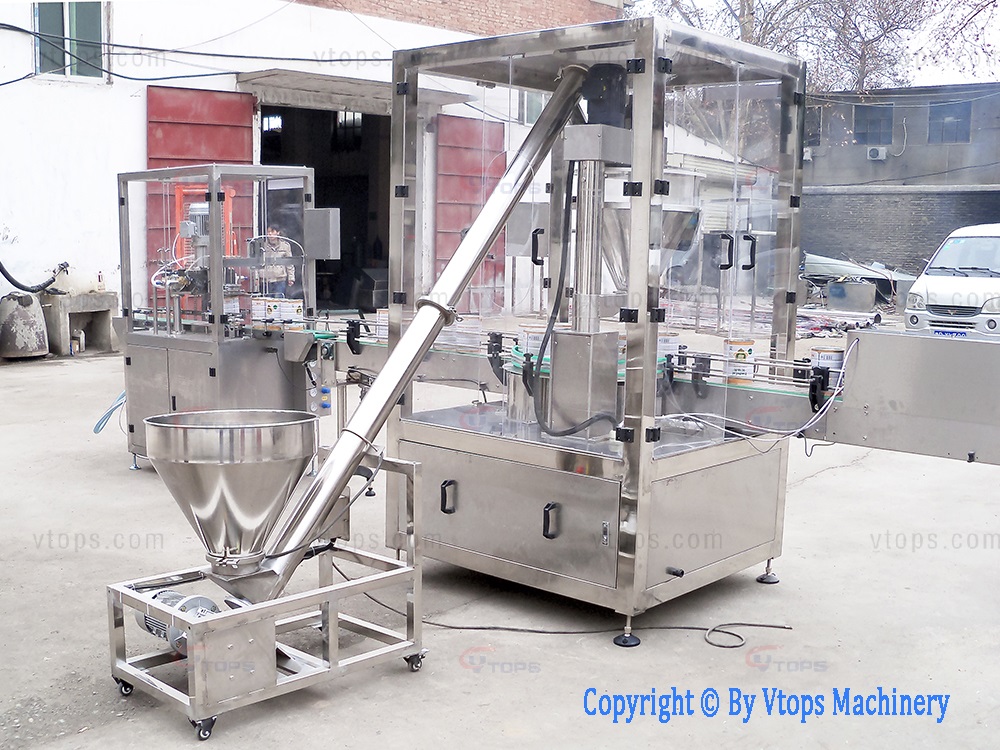

Photo Gallery

Case

Automatic Milk Powder Cans Filling Line Exported to German
