Semi Automatic Powder Filler Machine

Model: UA-P1

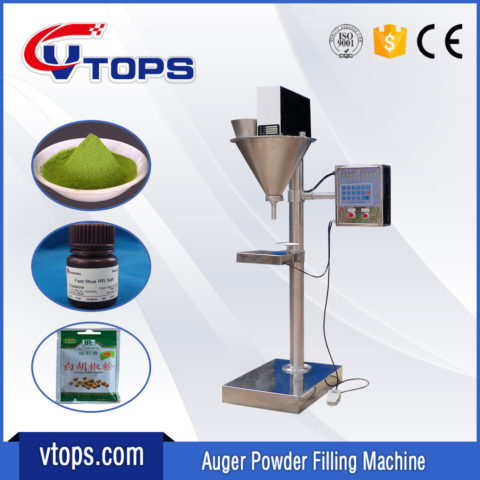

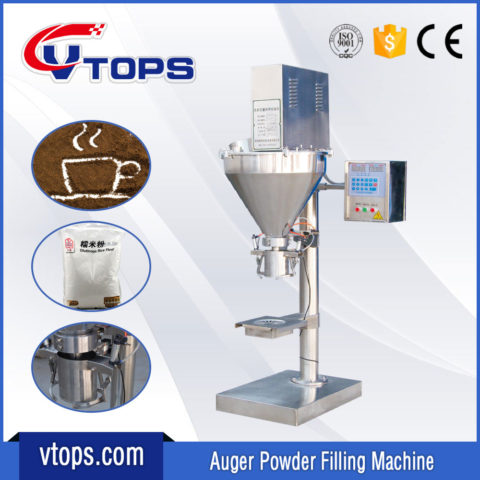

Semi Automatic Powder Filler Machine

Machine Type: Semi-Automatic, Manual.

Semi Automatic Powder Filler Machine adopts screw electronic weighing measurement mode feedback combining computer control, with automatic quantitative, automatic filling, automatic error correction, count, clear material and other functions. Suitable for condiments, natural flavoring, food additives, flavors and fragrances, flour, milk powder, protein powder, solid drink, sugar, monosodium glutamate, pesticides, veterinary drugs, detergents, enzymes, feed additives, chemicals, new building materials and other powder (powder, superfine powder), mixing powder materials quantitative packaging, quantitative filling.

Semi Automatic Auger Powder Filling MachineImage Description: Semi Automatic Auger Powder Filling Machine by Uniaote Machinery.

Features:

  • Suitable for all kinds of bottles, cans, bags of quantitative filling packaging container is not restricted.
  • Filling motor is a stepper motor or servo motor.
  • Stirring motor imported from Taiwan, free-noise motor.
  • Photoelectric sensor induction signal filling material, can also optional foot switch signal.
  • Feedback value can be adjustable, to meet a variety of precision required.
  • The filling motor speed can be adjustable, to meet the requirements of various materials.
  • All stainless steel, match with feeder enables automatic materials level control.

Functions:

  • Automatic error correction
  • Weight out-of-tolerance alarm
  • The product count

Technical Parameters:

  • Fill Range: 1 gram to 5000 grams
    Need to replace the Auger Filler and Tube to guaranteed accuracy and speed; details reference the “The Diameter List of Auger Filler Tube” please!
  • Fill Speed: 1200-3500 fills / hours
  • Fill Control: Timer based / Sensor based
  • Container: Bottle, jar, pouch, can
  • Accuracy: 1.0
  • Hopper Volume: 50 liters
  • Machine Dimensions: 690× 600×1900mm
  • Power: 3P AC380 50Hz 0.9Kw

The Diameter List of Auger Filler Tube

  • 1g-5g φ20mm – φ22mm
  • 5g-10g φ20mm – φ26mm
  • 10g-50g φ26mm – φ28mm
  • 40g-100g φ30mm – φ34mm
  • 100g-300g φ38mm – φ40mm
  • 300g-500g φ40mm – φ45mm
  • 500g-1000g φ50mm – φ55mm
  • 1000g-5000g φ60mm – φ65mm

* The diameter of auger filler tube for reference only. Please contact our engineers for details. Thank you!

Auger Filler TubeImage Description: Auger Filler Tube

How does it work?

Design Diagram:

Auger Powder Filler Filling Machine Design Diagram

Component List:

Component List of Semi Automatic Powder Filler (UA-P1)

Classic Case

The Layout Drawing

The Layout Drawing of Semi Automatic Powder Filling MachineImage Description: The Layout Drawing of Semi Automatic Powder Filling Machine.

The Photo On Scene

The Scene Photo of Semi Automatic Powder Filling MachineImage Description: The Scene Photo of Semi Automatic Powder Filling Machine

How dose it shipping?

We will packaging in Plywood Box, the following is the packaging information:
(1) Packaging Information: Total 3 (three) Packages in Plywood Box.

  • 2100*700*1000mm 1.47CBM 260Kg Packaging the Powder Filling Machine;
  • 880*950*1000mm 0.84CBM 130kg Packaging the Hopper of Screw Feeder;
  • 2700*270*460mm 0.34CBM 70kg Packaging the Conveyor of Screw Feeder.

(2) Packaging Photos: Details please visit the following!

(3) Transport Photo:
The Transport Photo of Semi Automatic Auger Filler Powder Filling Machine

What is the Delivery Terms?

  1. We will deliver it within 5-8 working days after receiving the prepayment.
  2. FOB China’s main port, or shipping to the main port of your country.

For a comparison of P1 and P2

Many customer inquiry us the difference between P1 and P2, we made a comparison table, to facilitate the customer to choose the right machine. It is follow:

  • Filling Range
  • Filling Accuracy
  • Contact Materials
  • HMI (Human Machine Interface)
  • Control System
  • Filling Motor
  • Split Hopper
  • Level Monitoring Hopper
  • UA-P1
  • 5g – 5000g
  • ± 1%
  • SUS304
  • Keyboard
  • SCM (Single Chip Microcomputer)
  • Stepper Motor
  • Customizable
  • Customizable
  • Inquiry Us
  • UA-P2
  • 5g – 5000g
  • ± 1%
  • SUS304

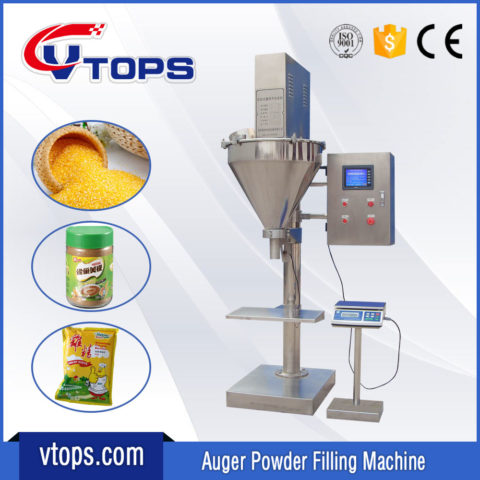

  • LCD Touch Screen (Brand of DELTA)
  • PLC (Brand of DELTA)
  • Servo Motor
  • Customizable
  • Customizable
  • Inquiry Us
