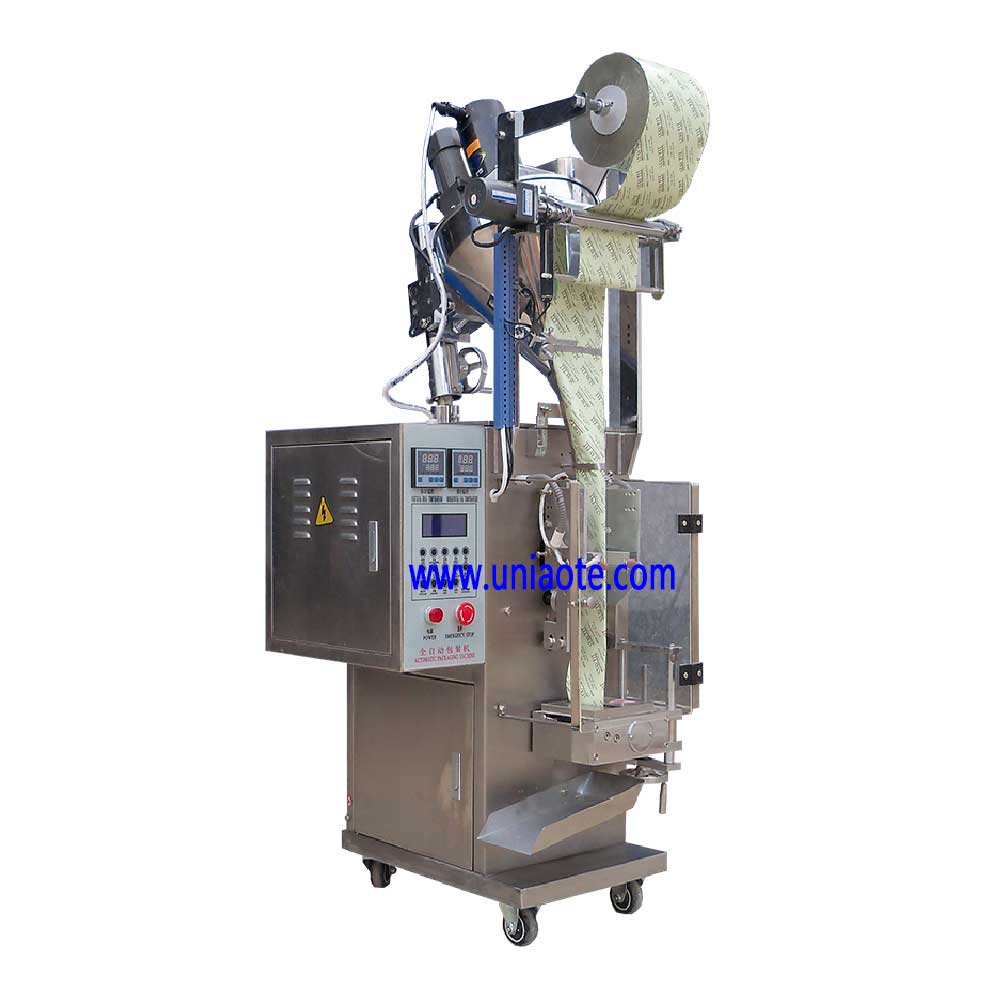

Dry Powder Automatic Auger Powder Packing Machine

Model: DXDF

Dry Powder Automatic Auger Packing Machine with Auger Filler Model DXD

Ⅰ Specifications:

  1. Microcomputer controlled, liquid crystal display, easy to operate, stable and reliable operation.
  2. Step motor is applied in bag-making system. Controller with Chinese or English displaying.
  3. With quadruple heat-control and reliable photoelectric detectable system.
  4. Print batch no. and manufacture date automatically and with tearing notch.
  5. Advanced vibrating counting device, multiple-direction vibrating. The amplitude can be adjusted sleeplessly according to materials.
  6. The film sealing system is automatically in open state after shut down.
  7. Automatic tracking color, automatically complete the positioning of the bag, fixed length.
  8. Seal style: Three Side Sealed, Four Sides Sealed, Back Sealed.

Ⅱ Technical Parameters:

  • Measurement Range
  • Packing Speed
  • Measurement Method
  • Measurement Accuracy
  • Bag size
  • Code Method
  • Power
  • Weight
  • Dimensions
  • DXDF-280 Powder Packing Machine
  • 1 gram – 50 grams
  • 0-50 bags/min
  • Inclined Auger
  • Less than 1%
  • L 40-160mm, W 40-120mm
  • Hot Stamp Printer
  • AC 220V 50Hz 1.1Kw
  • 220kg
  • 730×630×1580mm
  • DXDF-350 Powder Packing Machine
  • 100 gram – 500 grams
  • 0-40 bags/min
  • Auger
  • Less than 1%
  • L 80-250mm, W 60-150mm
  • Hot Stamp Printer
  • AC 220V 50Hz 2.3Kw
  • 370kg
  • 1000×950×1800mm
